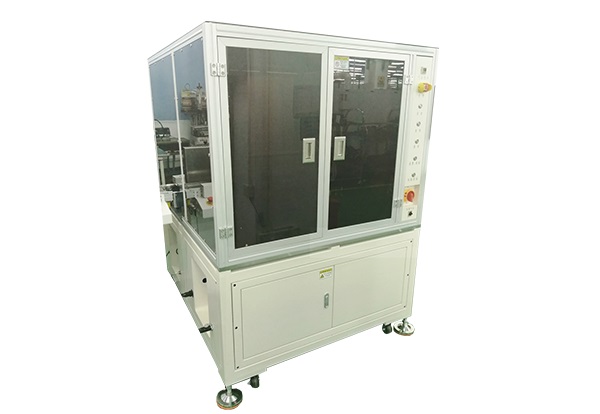

ATM-250F automatic PCB line labeling machine
- Product：ATM-250F automatic PCB line labeling machine
- Catalogue：Accessory labelling machines
- Views：178053times
- Update：2022/5/27 16:57:31
- Call：133-6065-4218

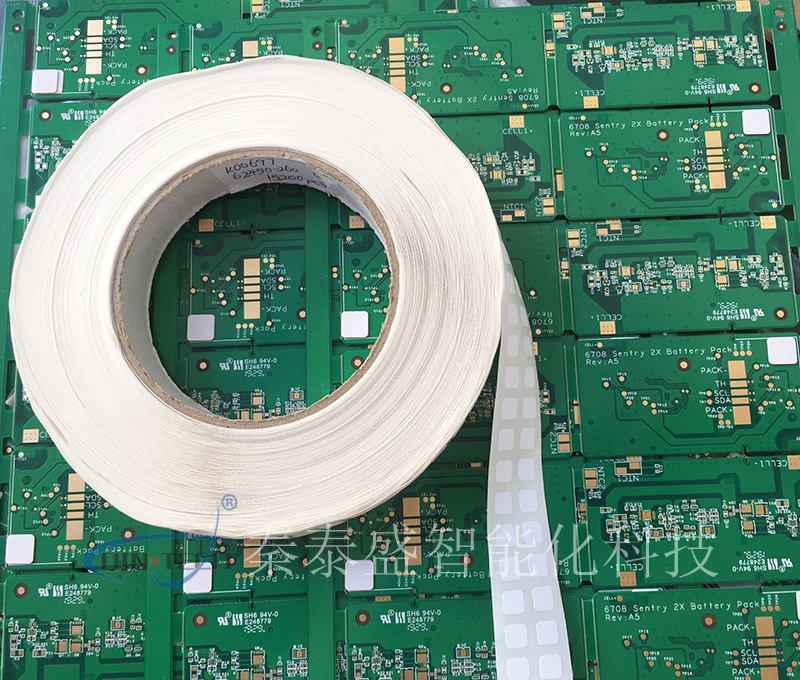

Atm-250f automatic PCB line labeling machine PCBA board automatic turning and labeling machine, suitable for SMT industry all kinds of need to label, adhesive, self-adhesive circuit board; Improve SMT online labeling machine capacity; Inside the machine, the turning mechanism can be designed for specific PCB board to achieve double-sided labeling; Significantly reduce operator labeling error rate; Make SMT line more fluent and efficient.

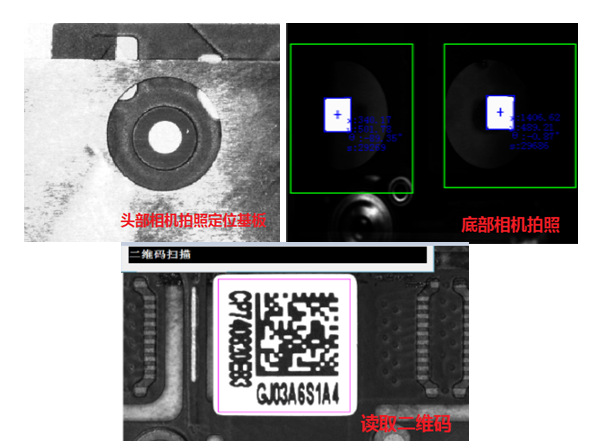

Atm-250f Automatic PCB line labeling machine PCBA board automatic flip board labeling machine CCD identification standard Mark point positioning
1. The head camera can accurately position the product to ensure the accuracy and stability of the fitting coordinates.
2. The bottom camera locates the contour of the laminating material to ensure accuracy and stability.
3. After fitting, check whether to read the QR code and upload it to MES system.
Atm-250f automatic PCB line labeling machine
Machine model: ATM-250NE
PCB size: Max: 220*300(mm) Min: 80*80(mm)
PCB flow: from left to right
Accessories size: Max:40*25(mm) Min:3*3(mm)
Mounting speed: MAX: 1.3s /PCS
Repetition accuracy: ±0.1mm
Board thickness: 1 ~ 3.0mm
Z-axis stroke: 0-35mm
Mounting head: 2
Feeder configuration: 1
Feeder bottom paper width: 70mm
U Angle range: 0 ~ 360°
Board turning function: the machine has its own turning function (PCB board size: length 220±10mm, width 150 ~ 200mm), and can be customized according to customer requirements of different sizes
Orbit height: 900±30mm
Signal interface: Standard SMEMA
